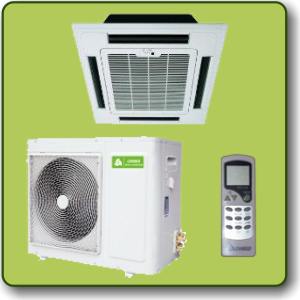

Product: 24,000 BTU/CCA - Ceiling Casette Air Conditioner - 24HR1 - R410a GAS
Product Description
| Model | CCA-24HR1 | |
| Indoor Power supply | V-Ph-Hz | 220~240/1/50 |
| Cooling | Capacity Btu/h | 24000 |
| kW | 7.1 | |
| Input W | 150 | |
| Rate current A | 0.7 | |
| EER w/w | 2.82 | |
| Heating | Capacity Btu/h | 26000 |
| kW | 7.7 | |
| W | 150 | |
| Rated Current A | 0.7 | |
| COP w/w | 3.51 | |
| Max. Input Consumption | W | 200 |
| Max. Current | A | 1.1 |
| Indoor Fan Motor | Model | YDK-55Q-6P3 |
| Input W | 150 | |
| Capacitor uF | 3 | |
| Speed (Hi/Mi/Lo) r/min | 650/580/480 | |
| Indoor Coil | Number of Rows | 2 |
| Tube Pitch (a) x Row Pitch (b) mm | 21x12.7 | |
| Fin Spacing mm | 1.45 | |
| Fin Type | Hydrophilic Aluminum | |
| Tube Outside Dia and Type mm | ? 7 Inner grooved | |
| Number of Crcuits | 8 | |
| Indoor Airflow (Hi/Mi/Lo) | m3/h | 1200 |
| Indoor Noise Level | dB (A) | 44~48 |
| Indoor Unit | Dimension Body (W x H x D) Body mm | 840 x 840 x 230 |
| Panel mm | 950 x 950 x 50 | |
| Packaging (W x H x D) Body mm | 920 x 920 x 265 | |
| Packaging Dimensions Panel (W x H x D ) mm | 1030 x 1030 x 105 | |
| Nett Gross Weight Body Kg | 28/31 | |
| Panel Kg | 5.5/8.5 | |
| Max Pressure | MPa | 4.0 |
| Refrigerant Type | R410A | |
| Refrigering Piping | Liquid Side / Gas Side mm | ? 9.52/15.88 (3/4"+5/8") |
| Drainage Pipe | mm | 25 |
| Controller | Remote controller | |
| Operation Temperature | oC | 16~32 |
| Ambient Temperature | oC | -7~43 |
| Application Area | m2 | 28-50 |
| Model | COU-24HR1 | |
| Power Supply | V-Ph-Hz | 220~240/1/50 |
| Cooling | Capacity Btu/h | 24000 |
| Input W | 2400 | |
| Rated Current A | 10.6 | |
| Heating | Capacity Btu/h | 26000 |
| Kw | 7.7 | |
| Input W | 2100 | |
| Rated Current A | 9.2 | |
| Max Input consumption | W | 2700 |
| Max Current | A | 13.2 |
| Starting current | A | 49 |
| Compressor | Model | ASH264RV-C8DU1 |
| Type | Rotary | |
| Brand | Hitachi | |
| Capacity Btu/h | 24000 | |
| Input W | 2200 | |
| Rated Current (RLA) A | 9.95 | |
| Locked Rotor (LRA) A | 49 | |
| Thermal Protector | Internal | |
| Capacitor uF | 55 | |
| Refrigerant Oil ml | 600 | |
| Outdoor Motor Fan | Model | YDK-60A-6F |
| Input W | 150 | |
| Capacitor | 4 | |
| Speed (Hi/Lo) r/min | 850 | |
| OutdoorCcoil | Number of Rows | 2 |
| Tube Pitch (a) Test Row Pitch mm | 25x21.65 | |
| Fin Spacing mm | 1.8 | |
| Fin Type | Hydrophilic | |
| Tube Outside Dia. and Type | mm | 9.52 Inner grooved |
| Number of Circuits | 5 | |
| Outdoor Airflow | m3h | 3800 |
| Outdoor Noise Level | dB (A) | 58 |
| Outdoor Unit | Diamension (W x D x H) mm | 930 x 370 x 700 |
| Packaging (W x D x H) mm | 990 x 410 x 770 | |
| Nett Gross Weight Kg | 52/56 | |
| Refrigerant Type (R410a) / Qty | Type/g | R410A/1800 |
| Trottle Part | Capillary | |
| Design Pressure | MPa | 4.0/1.2 |
| Max Pressure | MPa | 4.5 |
| Connecting Wiring | Power Supply | From outdoor unit |
| Power Wiring | 3x2.5/3x1.0 | |
| Signal Wiring | 5x1.0 | |
| Refrigerant Piping | Liquid Side /Gas Side mm | 9.52/15.88 (3/8"+5/8") |
| Max Pipe Length m | 20 | |
| Max High Drop m | 10 | |
| Ambient Temperature | ºC | -7~43 |
